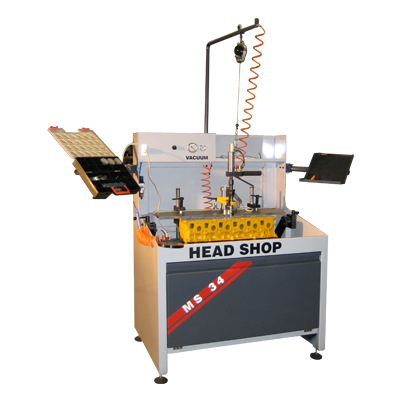

MS34 Pneumatic seat cutting bench


These head service shops meet all the requirements of modern engine reconditioning expert: quick and easy head positioning and clamping makes the various reconditioning operations, which may be effected in one single action, easier to carry out.The head service shop MS34 has a motorized valve seat boring unit and a vacuum tester. The boring head with multi-angles tool is the same working system used for the valve seat boring machine.



SPECIFICATIONS
Max lenght of cylindermm
900
Min boring diametermm 18
Max boring diameter
mm40
Min diameter for cutting seat pockets mm 18
Max diameter for cutting seat pocketsmm
65
Spindle inclination
degrees
+/-35°
Spindle rotation speed girixminute 5-100
Max travel of spindle mm 20
Pneumatic motor power
N 5
