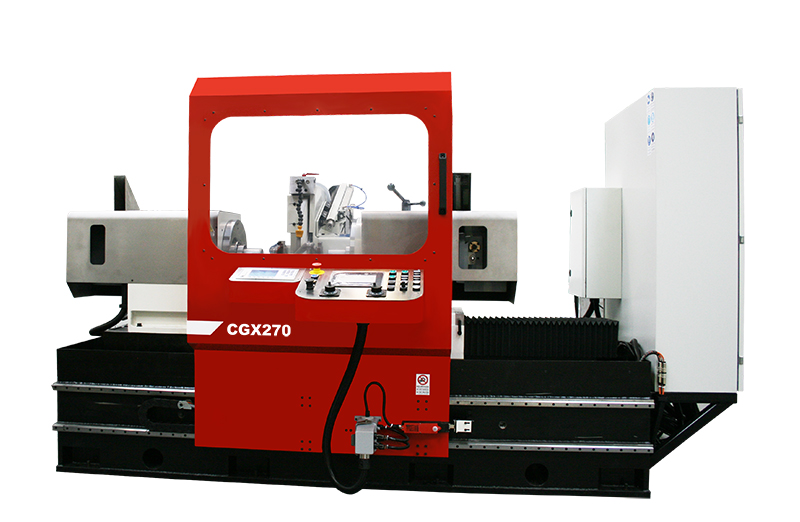

CGX CRANKSHAFT GRINDING MACHINE

The Conventional Machine development

The CGX series is the conventional machine with these additional features

+ PLC or CNC machine control
+ BALL SCREW ON X AND Z AXIS
+ LINEAR ENCODERS ON X AND Z AXIS
+ AUTOMATIC WORKING AND DRESSING CYCLES
+ CUSTOMIZED CYCLES

DIFFERENT MACHINE CONFIGURATIONS

Wheelhead moves on X and Z axis or Wheelhead moves only on X axis and table moves on Z axis
Composital or Cast Iron base
Linear guideways or V&flat guides
Complete or partial safety guarding
Automatic in-process measuring device or manual fork measuring device with digital axis readout
Customizable graphic interface
Customizable cycles
Process control system with multi-function system for grinding process

SPECIFICATIONS

Height centers [mm] from 270 to 650
Swing over table [mm] from 540 to 1300
Max distance between centers [mm] from 600 to 6400
Max diameter of grinding wheel [mm] from 710 to 1300
Max weight between centers (without steady rest) [kg] from 300 to 3500
