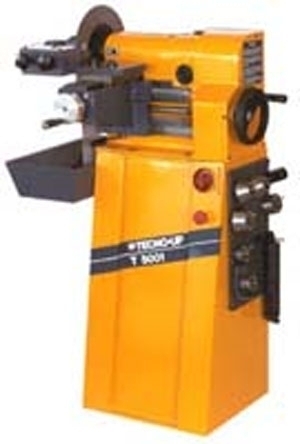

T5001 Brake lathe for drums and discs


The lathe T5001 is appositively studied for the needs of the big cars' producers which ask the intermittent turning of the discs and of the drums. This type of turning avoids the radial moving of the braking gasket of the disc, and the lateral moving of the drum during the braking. The machine is equipped with a steel sheet base and a set of clamping devices.

SPECIFICATIONS
Min turning diameter on drums
mm
 150
Max turning diameter on drums mm  480
Min turning diameter on discsmm300
Max turning thickness on discsmm40
Discs turning width
mm
 120
Longitudinal stroke mm
 170
Transversal strokemm
 100
Turning speed
RPM 85
Motor power
kw 0.75
